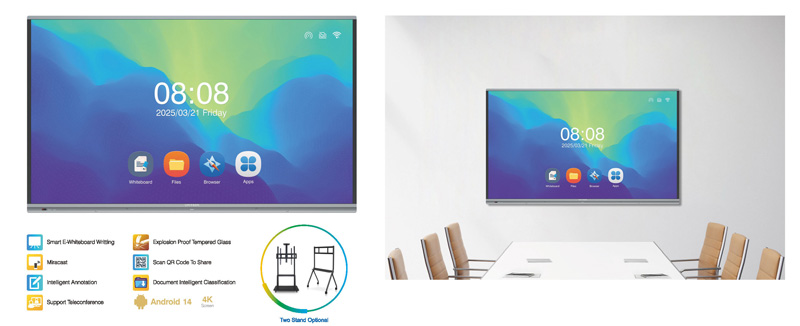

Interactive Conference/Education LED Touch Display With Built-In Camera & Microphone



Latest Interative Conference/Education Touch Display

With Built-In Camera & Microphone


Panel Available Size 55" 65" 75" 86" 98"
Panel type VA VA LG LG LG
Response time <8 milliscond
Aspect Ratio 169
Screen size 1210x680 1428x804 1650x928 1895x1066 2159x1214
Resolution 3840(H)x2160(V)
Viewing Angle 178°H)/178°W)
Pixel pitch(mm) 0.315x0.315 0.372x0.372 0.429x0.429 0.4935x0.4935 0.5622x0.5622
Refresh rate 60Hz 60Hz 60Hz 60Hz 120Hz
Degree of color 1.07B(10bit)
NTSC(Typ) 72%
Contrast Ratio 5000:01:00 4000:01:00 1100:1 1200:1 1200:1
Brightness 350cd/m2 350cd/m2 350cd/m2 330cd/m2 350cd/m2
Backlight type DLED
Service life 80000 hour
Touch accuracy ±1mm
Writing height  3.5mm
panel hardness 7H
Audio Built-in stero speakers 2x10W speakers in the front,1x15W speaker at the back
Sound track 2.1
Camera Pixel 8million
Built-In Camera X1
Camera position in middle of the upper frame
Field angle 73°
Microphone Microphone x6
Distance For Picking The Voice 8M
Touch Technology Touch mode Infrared
Touch point 20 point
Support system Windows 10/Windows 8/Windows 7/Windows XP/Android/Lin ux/Mac OS X/Chrome
Minimum identifier 2mm
Touch Type Fingers or any opaque objects(2mm)
Response time 15 milliscond
Android System Operation System Android 7.0
CPU Dual-core 1.2G
GPU 5 Cores Mali 450
RAM 2GB
ROM 32GB
WIFI versions 802.11 a/b/g/n/ac
operating frequency 2.4G,5G
working distance 12M
Interface HDMI input 2 2 2 2 2
USB 2.0 3 3 3 3 3
USB 3.0 1 1 1 1 1
RJ45 1 1 1 1 1
VGA input 1 1
Audio input 1 1
RS232 1 1
USB touch output 1 1
Audio output 1
line out 1 1 1 1
HDMI output 1 1 1 1 1
Power Power input AC100-240V 50/60Hz
Power ON consumption 200W 250W 300W 500W 750W
Standby Power 0.5W
Temperature Working temperature 0°C~40°C
Storage/Working  humidity 10% ~ 90RH
Storage temperature -20°C~60°C
PC System(Optional) PC model MT31
PC type ultra slim pluggable Intel core OPS
 OPS Option 1 i5,DDR4 8GB,M.2 128GB
OPS Option 2 i7,DDR4 16GB,M.2 256GB
OPS system Windows 10
HDMI output 1
USB 2.0 2
USB 3.0 2
microphone input 1
Audio output 1
PC interface 120pin
Packing machine size(mm) 1262x782x85 1489x906x89 1710x1029x89 1957x1169x90 2245x1323x90
packing size(mm) 1428x220x878 1656x204x1050 1886x210x1196 2134x210x1334 2483x376x1493
VESA hole 400x200mm 600x400mm 800x400mm 800x600mm 800x600mm
wall mount screw M8X25mm
N.W 26kg 37.5kg 52.3kg 69.8kg 102kg
G.W 36kg 49.8kg 66.2kg 89.4kg 136kg
