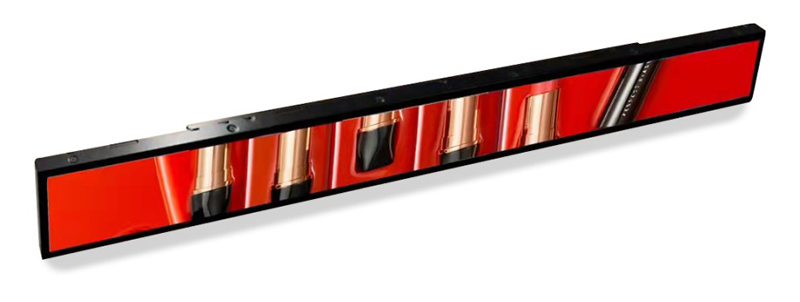

Shelf Strip Screen
Szie:15.1”/21.2”23.1”/24”/24.5”/35”/36.5”/37”/43.8”/49.5”/66.8” /68”/78.5”/88”
| Product Introduction | 1. Support real-time management and release on mobile, iPad and PC | ||
| 2. Support remote upgrade of advertising player software version and OTA upgrade | |||
| 3. Support the advertising machines in the same group can be played synchronously and the interval is less than 500ms synchronization | |||
| 4. Support the mobile phone to remotely set the properties of the advertising player, control the volume,rotation angle, time zone, turn off and turn on the advertising player | |||
| 5. Support remote monitoring of the network status, system status and hardware status of the player, and monitor the content of the advertising playeradvertising | |||
| 6. Support the needs of multiple forms of rolling subtitles and bullet screens, the font, size and subtitles and bullet screens can be editedcontent of | |||
| 7. Scheduling supports multiple priority levels, and supports shim/normal/interrupt/emergency message priority | |||
| 8. Scheduling supports multiple recurring modes, recurring by day/week/month | |||
| 9. It can support multiple media such as video/picture/marquee/subtitle/RSS/ component/ppt/pdf | |||
| 10. Support self-built template mobile phone one-key call to modify at any time | |||
| Display parameters | Model | 15.1" | 36.5" |
| Panel Type | a-Si TFT-LCD | a-Si TFT-LCD | |
| Display area | 374.78mm(H)x64.5mm (V); | 878mm(H)x242.6mm (V) | |
| Display Proportion | ＞3：1 | ＞3：1 | |
| Resolution | 1280X235 | 1920X540 | |
| Display Color | 16.7M | 16.7M | |
| Dot Pitch | 0.630(H)×0.630（V） | 0.45735×0.4494mm | |
| Brightness | 600CD | 450CD | |
| Contrast | 1500：1 | 1500：1 | |
| Viewing angle | 178° | 178° | |
| Response Time | 8ms | 8ms | |
| Refresh Rate | 60Hz | 60Hz | |
| Manual Language | Chinese/English | Chinese/English | |
| System Parameters | CPU | ARM Corter-A35 Quad core | ARM Cortex-A17 |
| DDR | 1G DDR3 | 2G DDR3 | |
| Flash | 8G EMMC | 8G EMMC | |
| Wifi | 2.4G WIFI | 2.4G WIFI | |
| 802.11b : DQPSK, DBPSK, CCK | 802.11b : DQPSK, DBPSK, CCK | ||
| 802.11g/n : 64-QAM,16-QAM, QPSK, BPSK | 802.11g/n : 64-QAM,16-QAM, QPSK, BPSK | ||
| Interface support | TF Card×1/OTG×1/Type-c×1 | TF Card×1/USB×2 DCIN×1 OTGX1 MICX1 | |
| System Version | Android 8.1 | Android 6.0 | |
| Power | Input Voltage | ～AC 100-240V 50/60Hz | ～AC 100-240V 50/60Hz |
| Maximum power consumption | 25W | 38W | |
| Standby power consumption | ≤0.1W（Board only） | ≤0.1W（Board only） | |
| Other | storage temperature | -20--60° | -20--60° |
| Amplifier power | 1×1.3W | 1×1.3W | |
| Product Size | 402.58×91.8×26.2mm | 906.4×271×42mm | |
| Product Weight | 1.8KG | 11KG | |
| Attachment | AC power adapter | AC 12V/5A | AC 12V/5A |
